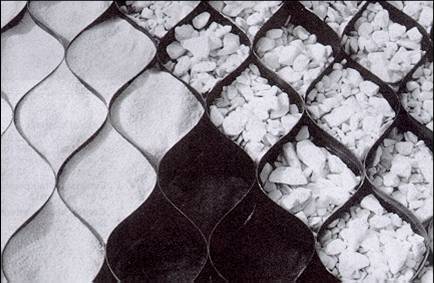

GeoCells offer an excellent solution to increase the bearing capacity of weak/soft ground soils creating a long-lasting site for roads, parking areas, containing stormwater, protecting liners for tailings basins, etc. GeoCells are also used for soil erosion and stability of slopes. CIVIL-TEX offers high quality Cellular Confinement System, GeoCells. They are lightweight, expandable, three-dimensional honeycomb cells manufactured from durable high density polyethylene (HDPE). Geocells can be filled with various types of materials, such as soil with vegetation, aggregate, concrete, or a combination materials. Geocells are also a cost-effective, efficient and environmentally friendly solution for erosion control, earth retention and load support projects.

Typical applications of Geocells are:

  • Soil Stabilization
  • Slope Erosion Control
  • Channel Protection
  • Retaining Walls

Civil-Tex geocells, "EnvironGrid", are available in heights of 3"(75mm), 4"(100mm), 6"(150mm), and 8"(200mm). Standard panels contain 58 strips of HDPE ultrasonically welded at different distances depending upon the chosen product configuration. Each strip is between 3 to 8 inches (75 to 200 mm), depending upon the cell depth, and 142 inches (3.6m) in length. Also, available with a smooth or textured surface in a perforated or solid wall construction.
